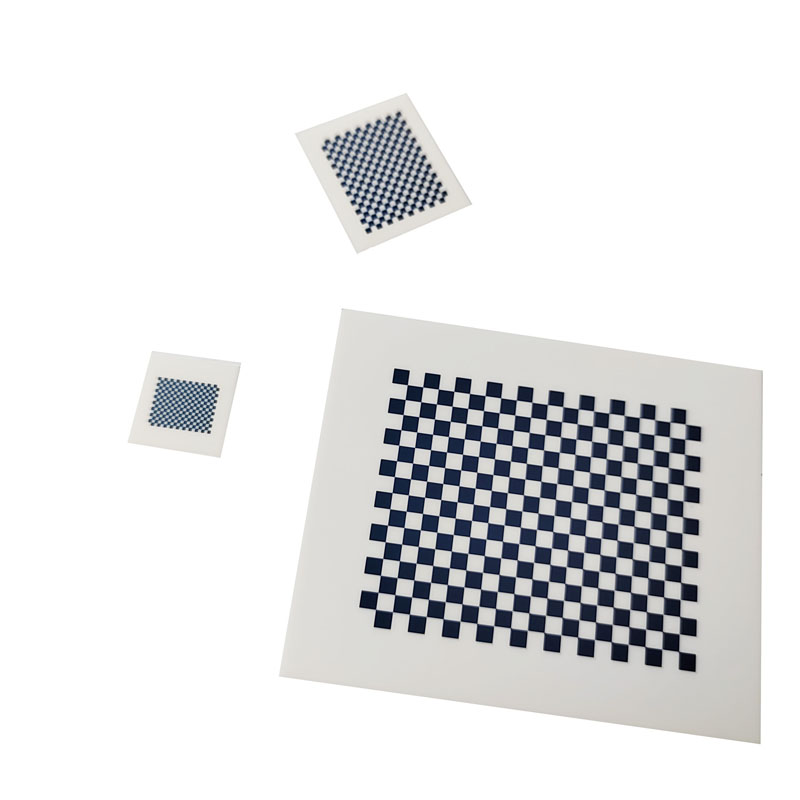

OpenCV 30mm Ceramic Calibration Board

Zhixing is a professional manufacturer and supplier in China, which has rich experience in the production of OpenCV 30mm Ceramic Calibration Board, we have our own processing and production factory, the price is favorable, and we support the customization of various sizes, while ensuring high precision, to meet all requirements of customers, welcome to consult, look forward to working with you.

OpenCV 30mm Ceramic Calibration Board, in fact, is a geometric model with a fixed spacing pattern array. The camera takes an image through a flat plate with a fixed spacing pattern array (the calibration plate), and then calculates the calibration algorithm to obtain the geometric model of the captured image, thereby obtaining high-precision measurement and reconstruction results, effectively correcting lens distortion, and greatly improving the accuracy of image measurement and photogrammetry in machine vision applications.The OpenCV 30mm Ceramic Calibration Board only needs two steps to improve the accuracy of the machine vision system.

First, error measurement and evaluation. The high-precision machine vision system can obtain the error value at any position within the field of vision through the image collected by the OpenCV 30mm Ceramic Calibration Board and the professional calibration algorithm, and then evaluate the level of the machine vision system's detection accuracy according to the error data.

The second is the correction and compensation of error images. The machine vision OpenCV 30mm Ceramic Calibration Board obtains the error data through the first step, and then starts to correct and compensate the position of each pixel information on the image. This process involves image translation, rotation, interpolation, reconstruction, brightness compensation and other precision image algorithms. After image correction and compensation, it can more accurately reflect the actual situation of the object to be measured, and achieve the goal of precision measurement and detection.

Reference drawing

Feature:

Application scenario

Exhibition photos

Customer FAQs

1. How do I choose the most appropriate calibration plate?

A: You can choose before one third to twice your vision. The specific needs depend on your actual use scenario and other conditions. We suggest you choose the size from our standard size, so the price will be very favorable.

2. What size is your standard product? I want to see it and then make a choice.

A: There is a corresponding table on the product details page for your reference, but the size is not complete. If you need more size options, you can contact customer service or send an email to our business manager to ask about all the sizes for your selection.

3. The standard product does not have the size and material I want. I want to customize a calibration board, can I?

A: Yes, you need to provide customized drawings in CAD and CDR formats. Or hand drawn drawings, we will recommend the most suitable calibration plate for you according to the drawings and specific details you give.

4. Can you deliver the goods to the designated warehouse for me?

A: Yes.

5. Can you deliver the goods to the port for me?

A: Yes.
