Halcon 40mm Ceramic Calibration Board
  • Halcon 40mm Ceramic Calibration BoardHalcon 40mm Ceramic Calibration Board
  • Halcon 40mm Ceramic Calibration BoardHalcon 40mm Ceramic Calibration Board
  • Halcon 40mm Ceramic Calibration BoardHalcon 40mm Ceramic Calibration Board
  • Halcon 40mm Ceramic Calibration BoardHalcon 40mm Ceramic Calibration Board
  • Halcon 40mm Ceramic Calibration BoardHalcon 40mm Ceramic Calibration Board

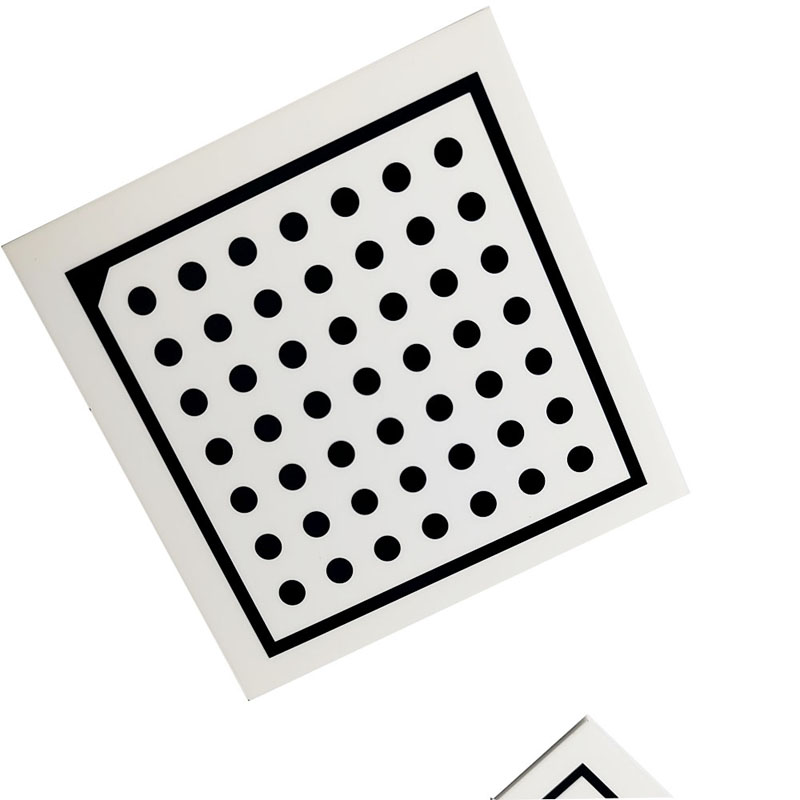

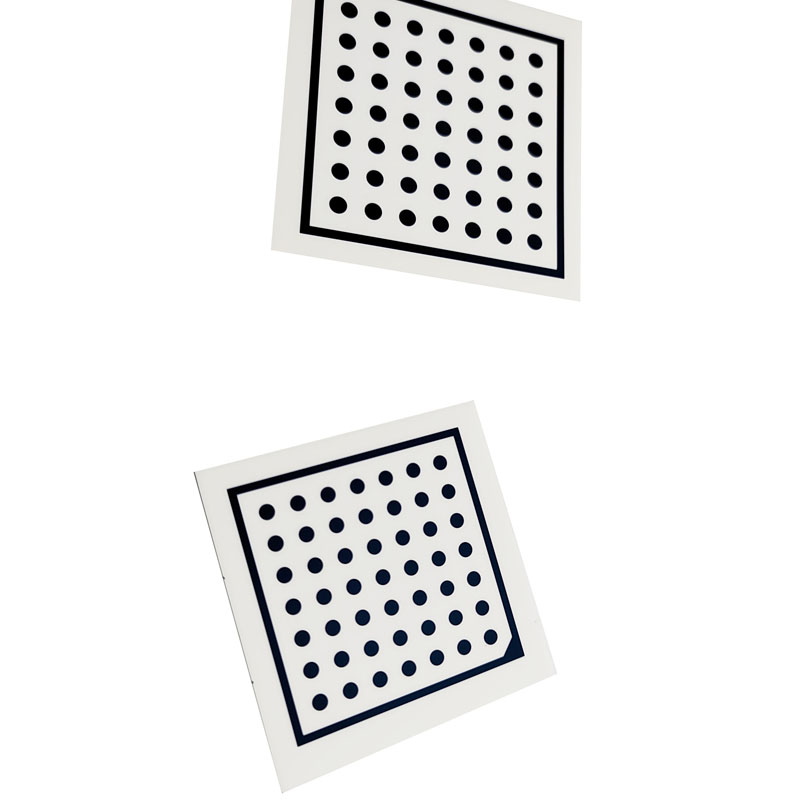

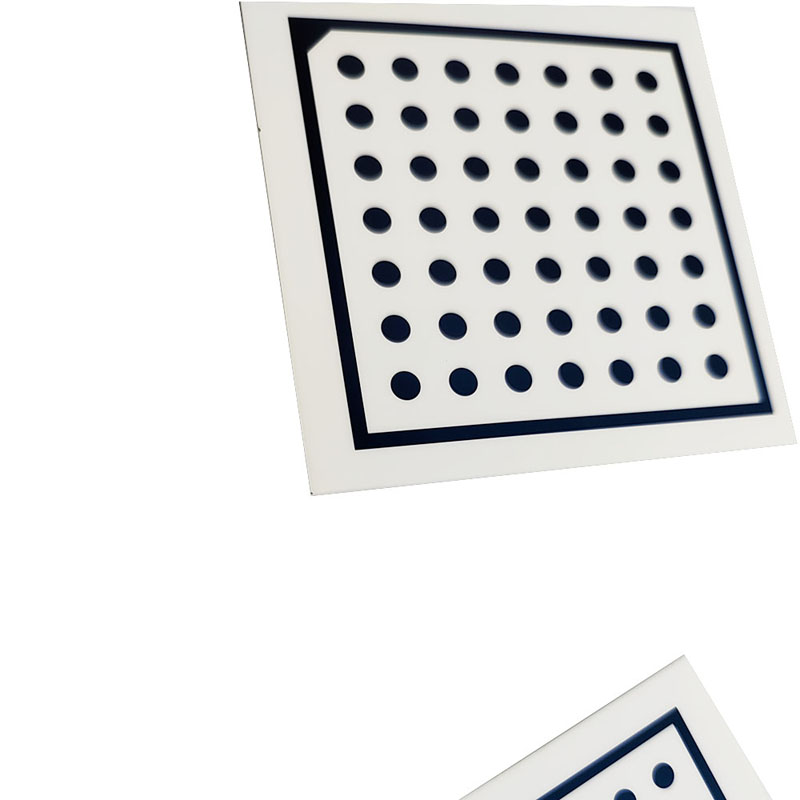

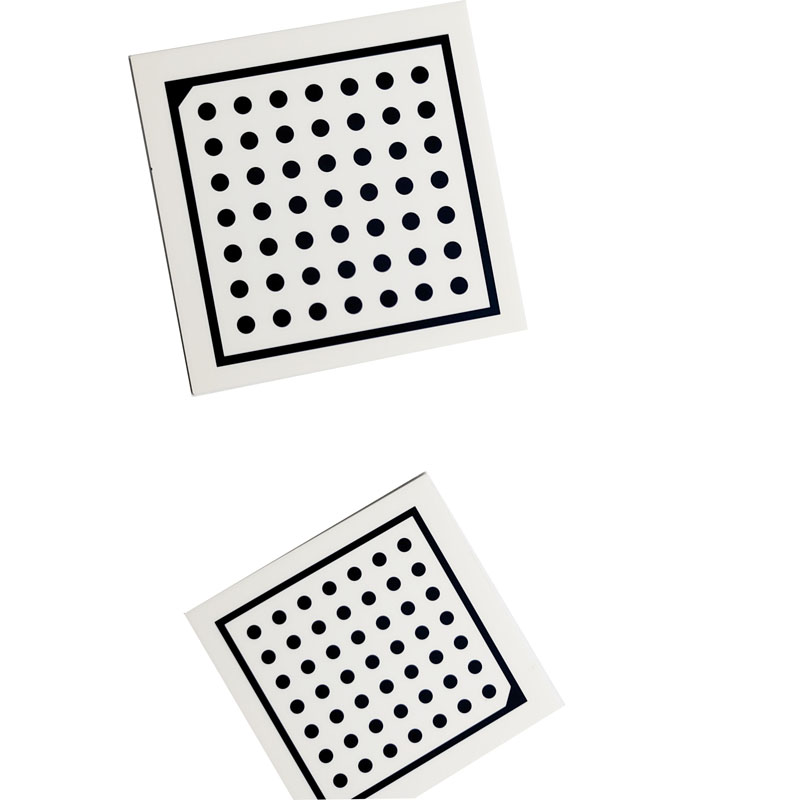

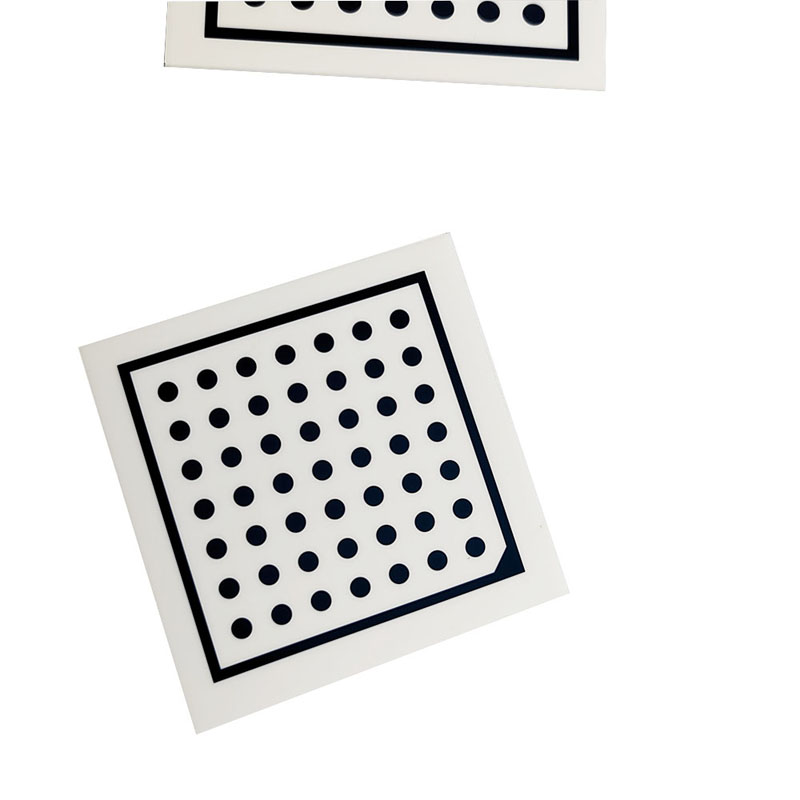

Halcon 40mm Ceramic Calibration Board

Get the high-quality Halcon 40mm Ceramic Calibration Board from Zhixing, a leading manufacturer and supplier in China. Our expertise and advanced production guarantee exceptional precision at competitive prices. Choose Zhixing for reliable calibration solutions! To supply quality assured products, at competitive prices, from knowledgeable technical experts, effectively, efficiently and with the best reliability in the market.

High quality Halcon 40mm Ceramic Calibration Board is offered by China manufacturer Zhixing. Buy Halcon 40mm Ceramic Calibration Board which is of high quality directly with low price.


Halcon 40mm Ceramic Calibration Board is a special graphic board, which is widely used in various experiments and tests in scientific research industry. It is designed to study the geometric properties of cameras and lens deformation.


In the scientific research industry, Halcon 40mm Ceramic Calibration Board is widely used, its main role is optical measurement. By calculating the position of the feature points on the calibration board, the internal parameters and external pose of the camera can be determined. Its specific applications are as follows:


1. Machine vision

Machine vision is a new technology that realizes object detection, recognition and processing through computer and camera monitoring. In this scenario, the Halcon 40mm Ceramic Calibration Board is used to calibrate the vision system. With the markings on the calibration board, the precise position and attitude of the camera can be determined to ensure the accuracy of the visual measurement results.


2. 3D modeling

In 3D modeling, the Halcon 40mm Ceramic Calibration Board is used to locate the 3D coordinates of the camera and the object, calibrate the internal parameters of the camera, and recover 3D information in the real scene. This can improve the modeling accuracy of the 3D model, more in line with the practical application requirements.


3. Medical testing

Medical image detection is a new field. The visualization and quantification of medical image can be improved through the marking function and image processing of optical calibration board. It is convenient and effective to locate and recognize medical images by matching the feature points and gray values of the calibration board.


In short, Halcon 40mm Ceramic Calibration Board technology is widely used in the scientific research industry, and can be used in machine vision, three-dimensional modeling, and medical detection and other related fields. Through the application of the calibration board, we can improve the accuracy of the experiment, ensure the reliability of the experimental results, and help scientists and engineers better complete the relevant research work.


Drawing display

Feature:

Specifications Diameter Distance number of dots material Precision
(mm)
Halcon6mm 0.375mm 0.75mm 7*7 glass/ceramics ±0.001mm
Halcon10mm 0.625mm 1.25mm 7*7 glass/ceramics ±0.001mm
Halcon15mm 0.9375mm 1.875mm 7*7 glass/ceramics ±0.001mm
Halcon20mm 1.25mm 2.50mm 7*7 glass/ceramics ±0.001mm
Halcon30mm 1.875mm 3.75mm 7*7 glass/ceramics ±0.001mm
Halcon40mm 2.50mm 5.00mm 7*7 glass/ceramics ±0.001mm
Halcon50mm 3.125mm 6.25mm 7*7 glass/ceramics ±0.001mm
Halcon60mm 3.75mm 7.50mm 7*7 glass/ceramics ±0.001mm
Halcon80mm 5.00mm 10.00mm 7*7 glass/ceramics ±0.001mm
Halcon100mm 6.25mm 12.50mm 7*7 glass/ceramics ±0.001mm
Halcon160mm 10.00mm 20.00mm 7*7 glass/ceramics ±0.001mm
Halcon200mm 12.50mm 25.00mm 7*7 glass/ceramics ±0.001mm



Only some products are shown in the table, if you need other products,

you can consult customer service
