White Panel Black Pattern Ceramic Calibration Board

Zhixing has rich experience in White Panel Black Pattern Ceramic Calibration Board, at the same time can ensure that the product accuracy meets the requirements of customers, support the customization of various models, looking forward to cooperating with you.

The White Panel Black Pattern Ceramic Calibration Board is a tool for calibrating and measuring robots for high-precision machine vision applications. It is suitable for industrial automation production line, robot vision system, 3D scanning, CNC machining and inspection. The calibration board can be used to measure the position and attitude of the robot, improve the precision and accuracy of the robot, improve the work efficiency, and reduce the production cost and work risk.

The requirements of the White Panel Black Pattern Ceramic Calibration Board are very strict, requiring high stability and high precision, as well as anti-interference performance and high repeatability. Therefore, only manufacturers with excellent optical quality and precision manufacturing processes can produce such difficult calibration plates.

In short, the White Panel Black Pattern Ceramic Calibration Board is a high-end machine vision measurement and calibration tool that can improve the precision and accuracy of robotic and automated production lines, suitable for a variety of industrial fields, and is an indispensable part of modern intelligent manufacturing and automated production. The White Panel Black Pattern Ceramic Calibration Board is a tool for calibrating and measuring robots for high-precision machine vision applications. It is suitable for industrial automation production line, robot vision system, 3D scanning, CNC machining and inspection. The calibration board can be used to measure the position and attitude of the robot, improve the precision and accuracy of the robot, improve the work efficiency, and reduce the production cost and work risk.

The requirements of the White Panel Black Pattern Ceramic Calibration Board are very strict, requiring high stability and high precision, as well as anti-interference performance and high repeatability. Therefore, only manufacturers with excellent optical quality and precision manufacturing processes can produce such difficult calibration plates.

In short, the White Panel Black Pattern Ceramic Calibration Board is a high-end machine vision measurement and calibration tool that can improve the precision and accuracy of robotic and automated production lines, suitable for a variety of industrial fields, and is an indispensable part of modern intelligent manufacturing and automated production.

FEATURE:

Essential details

Customized support:OEM, ODM

Place of Origin:Zhejiang, China

Brand Name:Zhixing

Model Number:ZX

Product Name:White Panel Black Pattern Ceramic Calibration Board

Material:ceramics

Color:White

Precision:±0.001

Characteristic:Fragile

Application:machine vision

Function:Calibration

Weight:±15g

Type:Optical accessories

Usage:Measurement Equipment

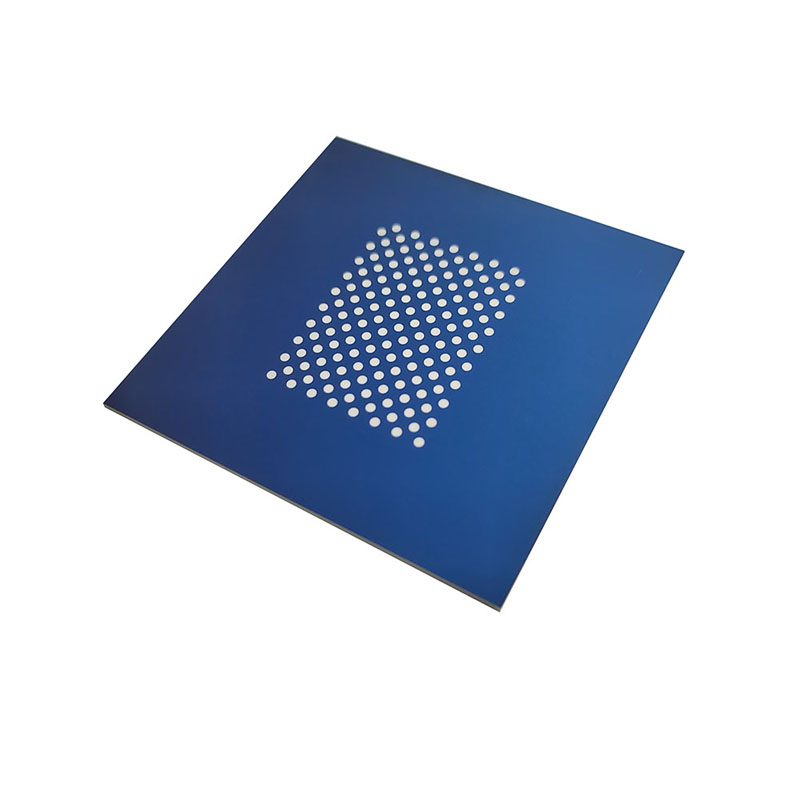

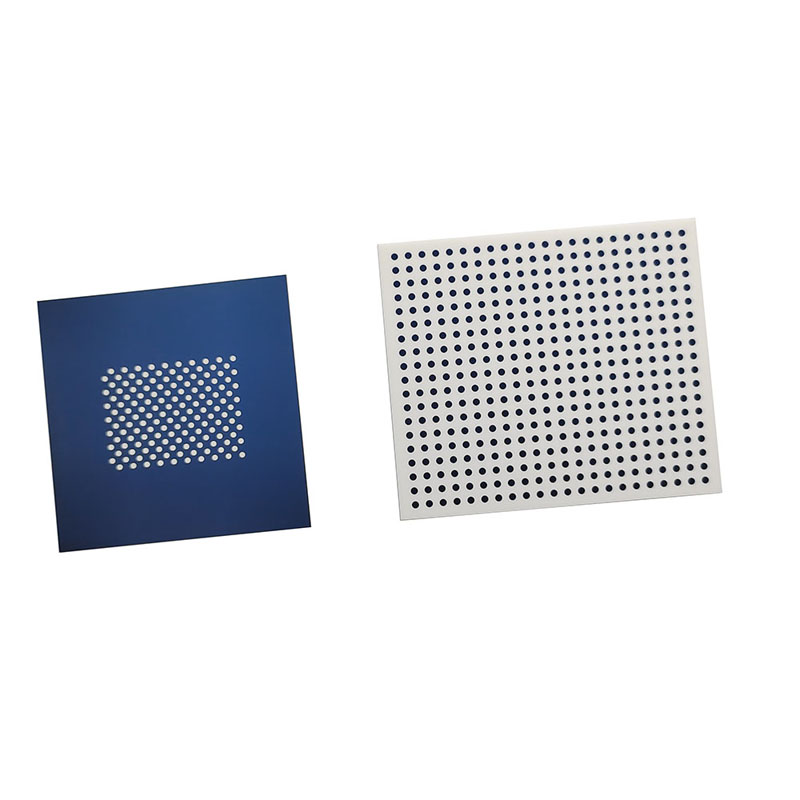

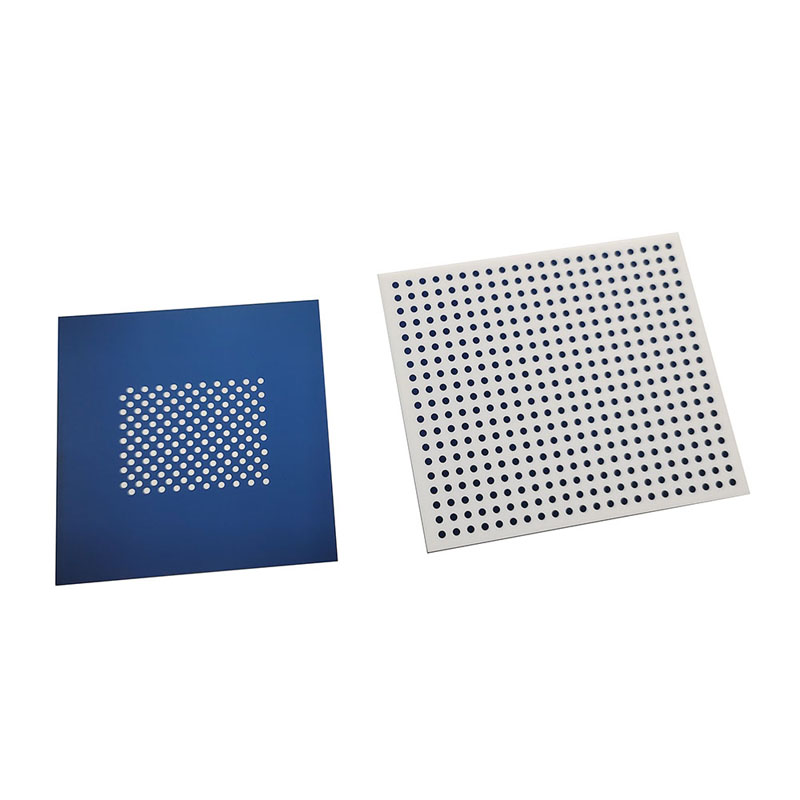

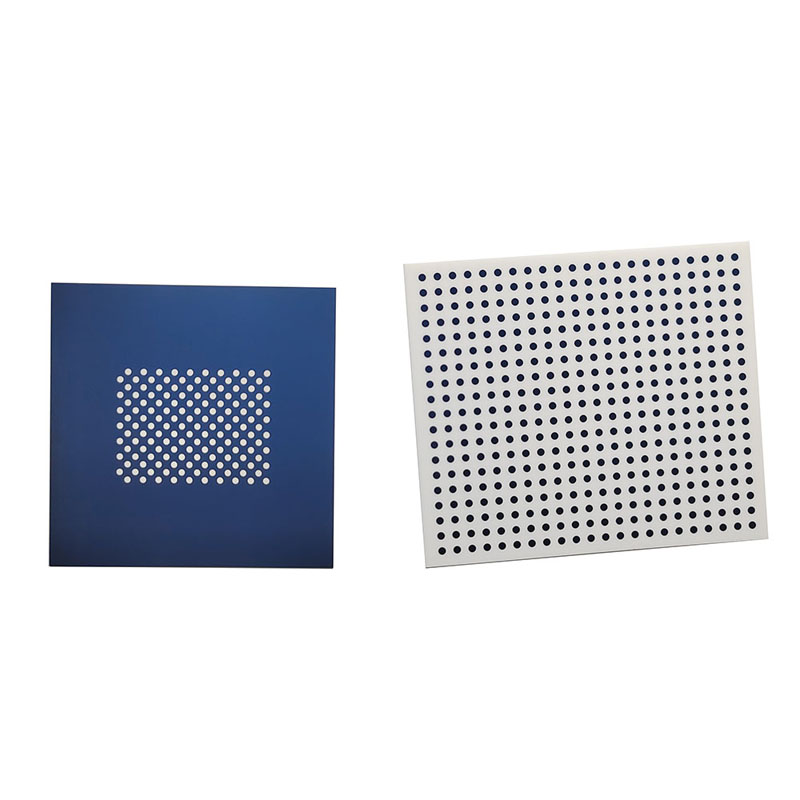

Blue panel white pattern VS blue pattern white panel

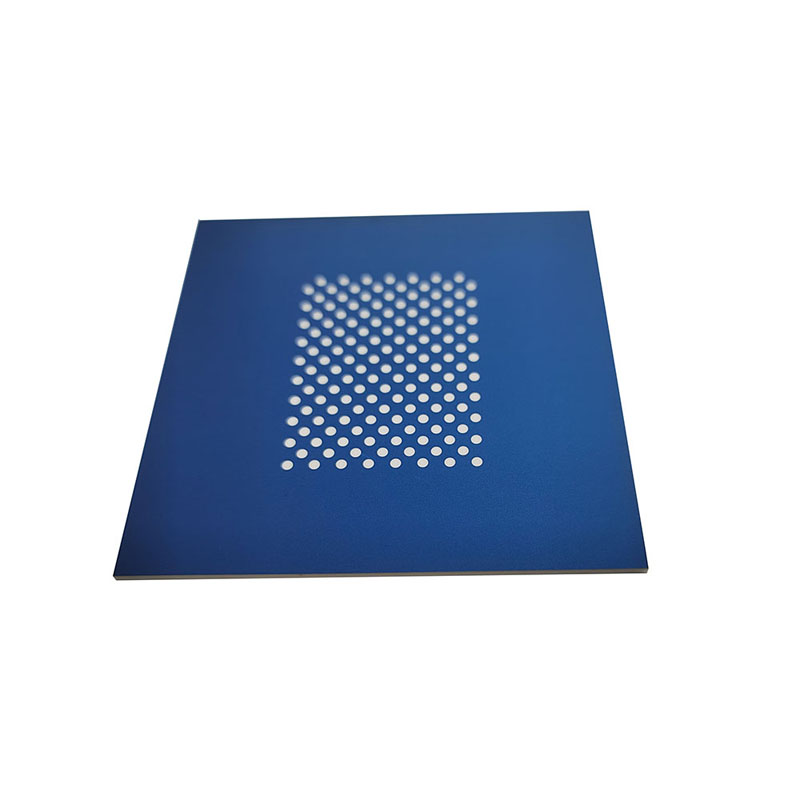

White pattern detail display

Precautions for use of White Panel Black Pattern Ceramic Calibration Board:

1. The number of calibration images is usually between 15 and 25. The number of images is too small, which is easy to lead to inaccurate calibration parameters.

2. The imaging size of the calibration plate shall be approximately 1/4 to twice of the whole picture, and the size shall be different according to different scenes.

3. Use the auxiliary light source to polish the calibration plate to ensure that the brightness of the calibration plate is sufficient and uniform.

4. The calibration plate imaging shall not be over exploded, which will lead to the offset of feature contour extraction, thus leading to inaccurate circle center extraction.

5. The calibration plate feature imaging cannot have obvious defocusing distance. When defocusing occurs, the distance of the calibration plate, the size of the aperture and the image distance can be adjusted by adjusting (for the fixed focus lens, focusing usually means adjusting the image distance).

6. During the calibration process, the aperture and focal length of the camera cannot be changed, which requires re calibration.

7. The number of calibration plate images shall cover the whole measurement space and the whole measurement field of view. The camera image shall be divided into four quadrants. It shall be ensured that the captured calibration plate images are evenly distributed in the four quadrants. In each quadrant, it is recommended to tilt twice in different directions.
